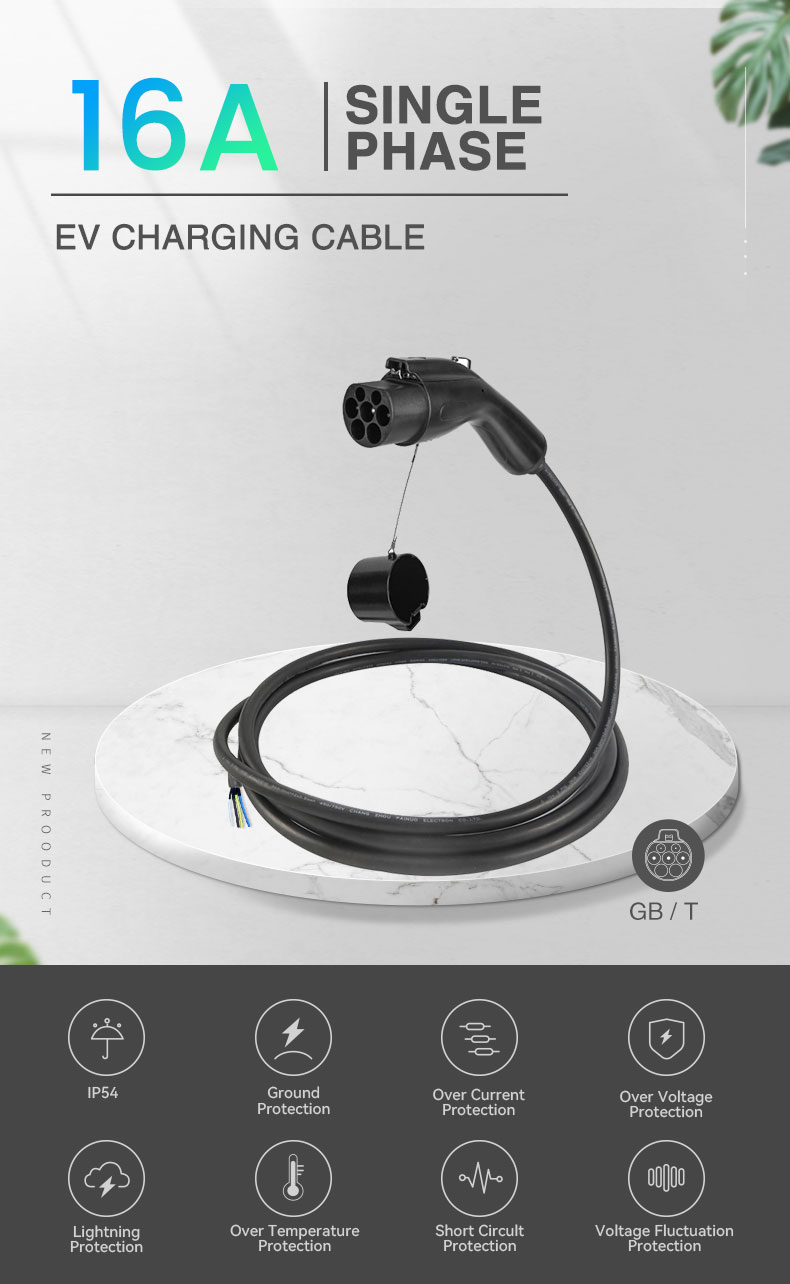

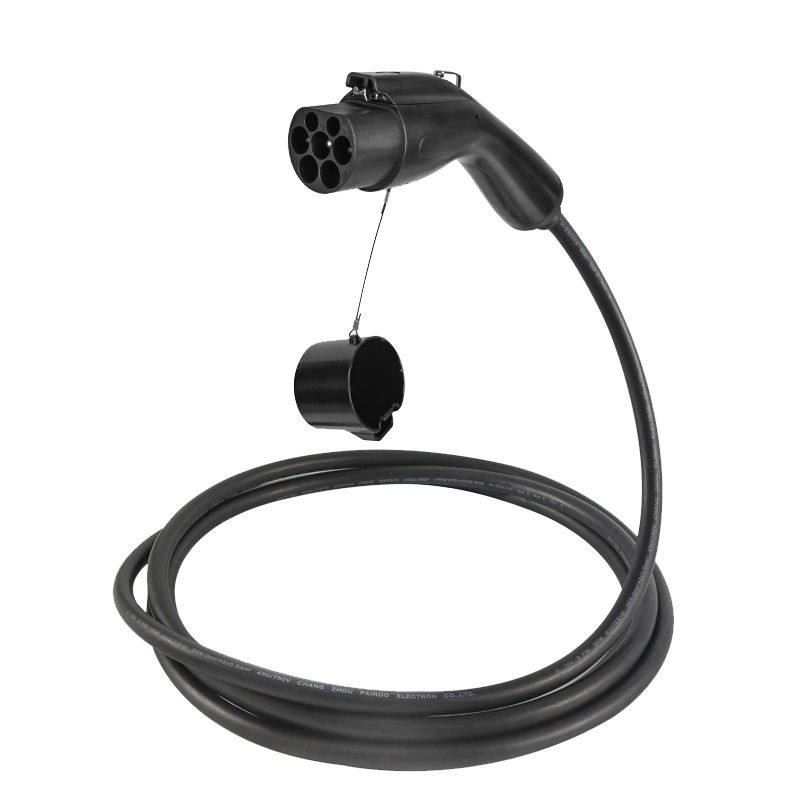

GBT ac ev charging cable

Mechanical life

no-load plug >10000 times

The rated current

16A, 32A

The rated voltage

250V, 440V

Insulation   resistance

>1000MΩ (DC500V)

Withstand voltage

2500V

Contact impedance

0.5mΩ Max

Operating   temperature

-30 ºC ~ +50 ºC

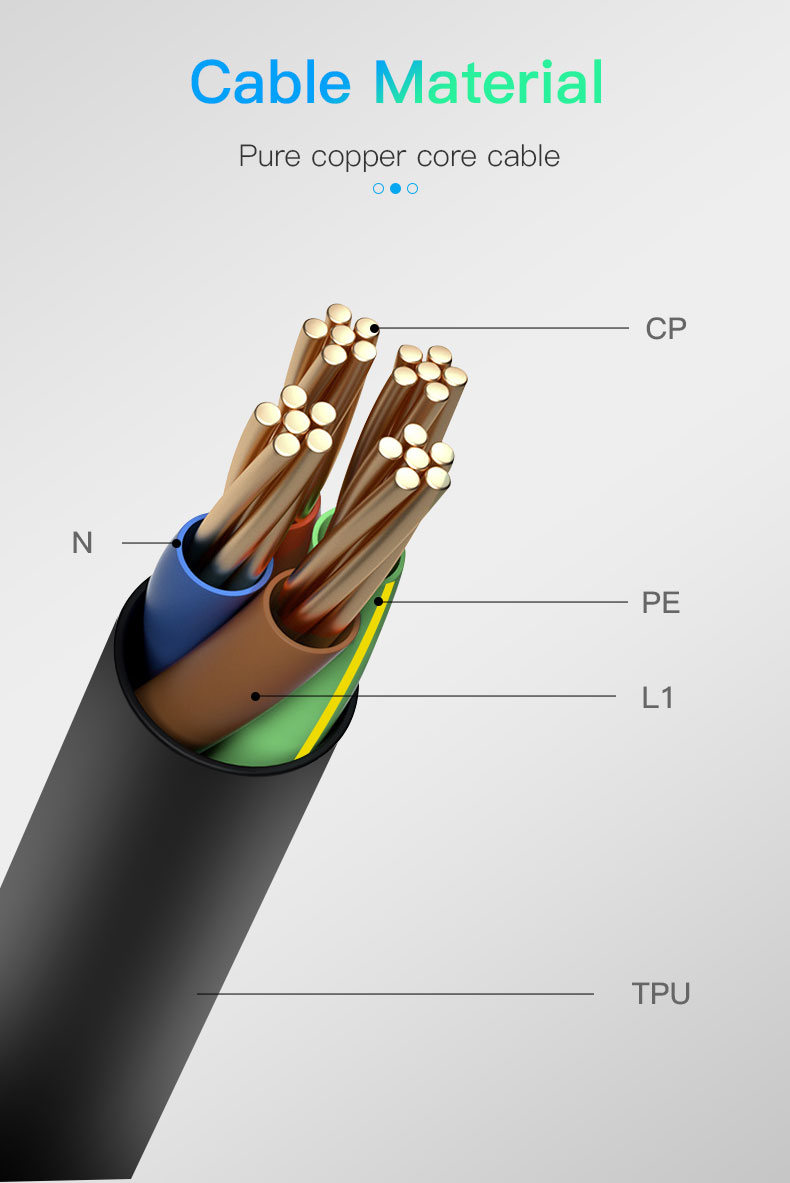

Cable

EV-F3x6mm²+2x0.5mm²

Features

1. Conform to the provisions and   requirements of

2. Using  riveting   pressure process with none screw, have a beautiful appearance. Hand-held   design conforms to the ergonomic principle, convenient plug.

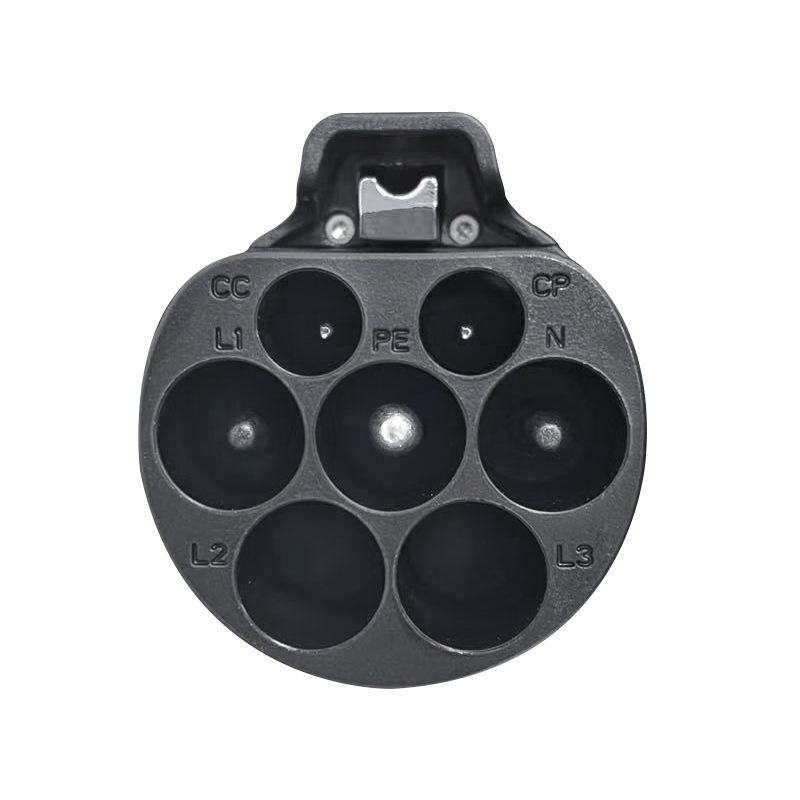

3. The head of pins using safety   insulation design to prevent direct contact with the hand.

4. Excellent protection   performance, protection grade achieved IP55 (working condition).

5. Applied double color coating   technology, customize color.
