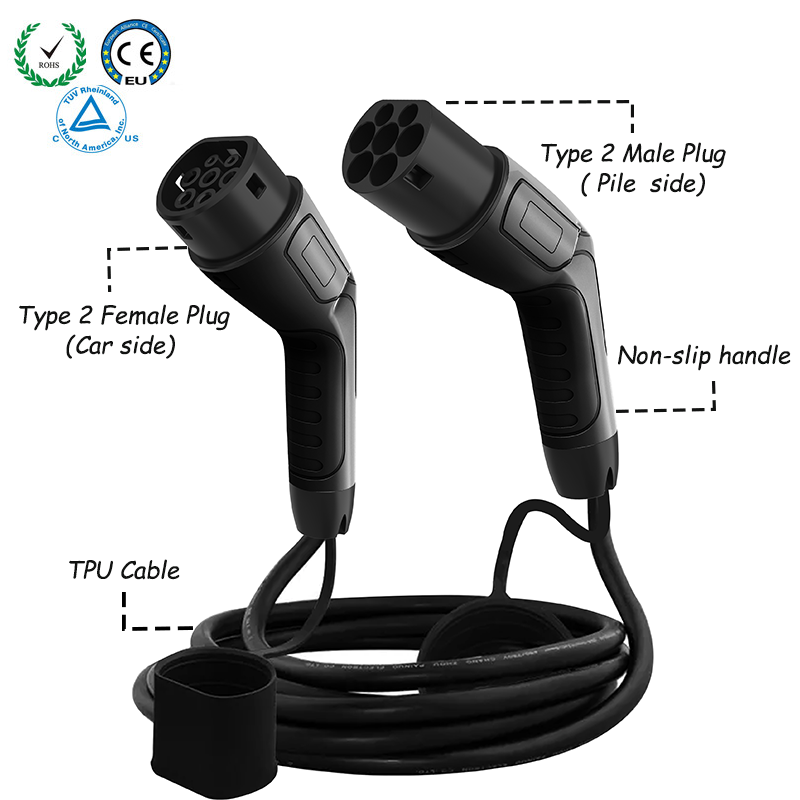

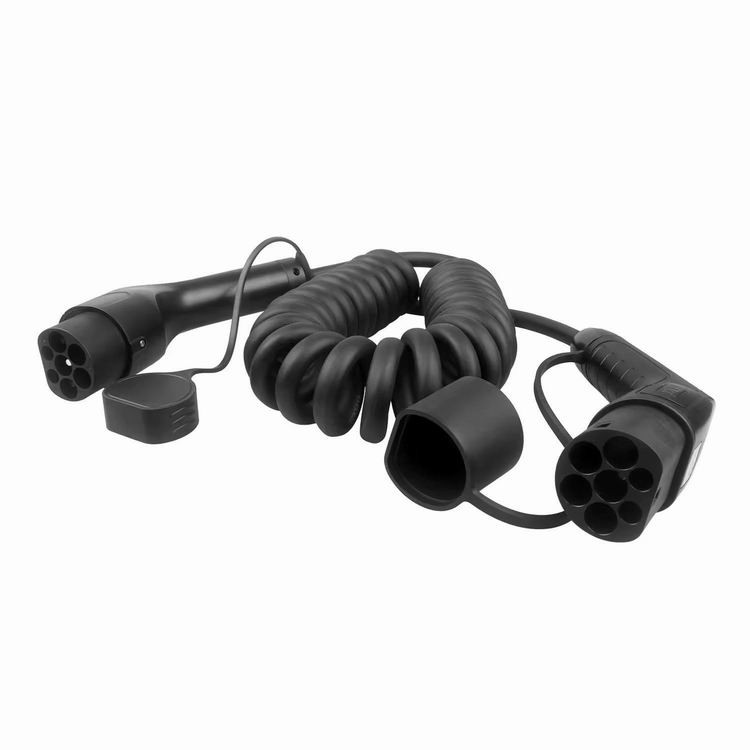

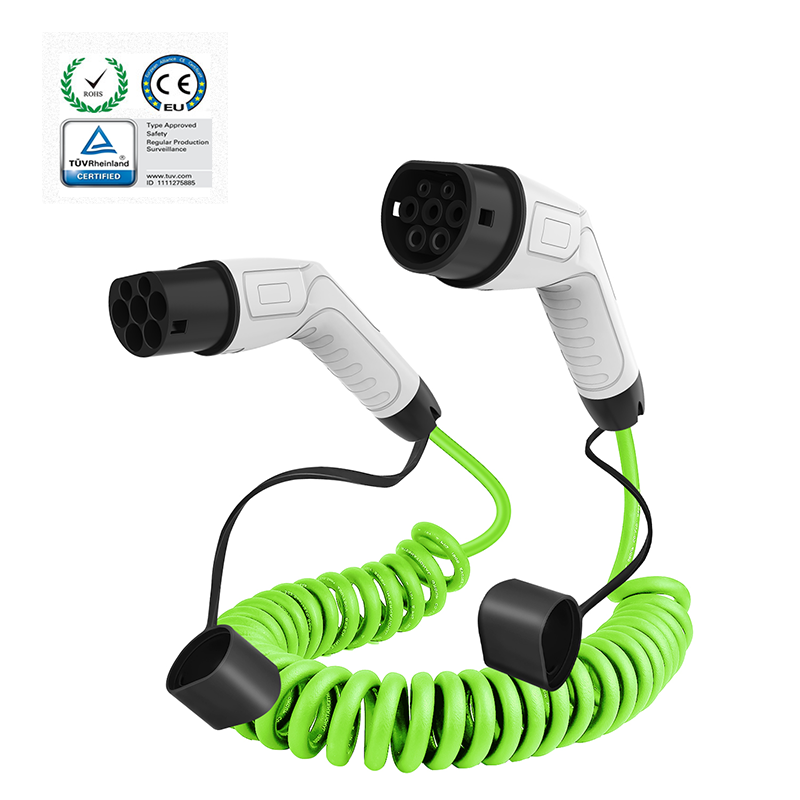

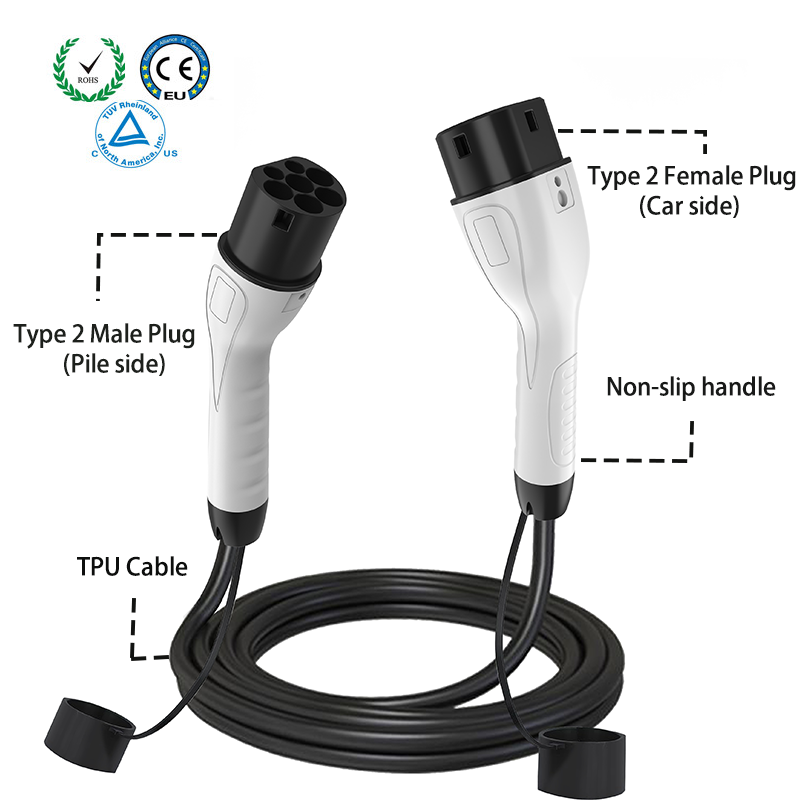

Type 2 To Type 2 EU spring Spiral Charge Cable

Protection rank

IP67

Fire retardant level

UL94V-0

Rated Current

8A/10A/13A/16A

Insulation resistance

>100M ohm (DC 500V)

Terminal temperature rise

<50K

Withstand voltage

 2000V

Contact resistance

≤0.05 MQ

Coupled insertion force

>45N>80N

Operating temperature

-35℃ to 50℃

Meet the standard

IEC62196 Type2

Charging cable

TPU/TPE

Mechanical life

No-load plug in/pull out> 10000 times

Impact resistance

1m drop or 2 Ton vehicle run over pressure

Product features

Integrated external mold. excellent waterproof and dustproof pertormance.   Flame retardant, Environmental protection, Pressure resistance, Abrasion   resistance.lmpact resistance.
