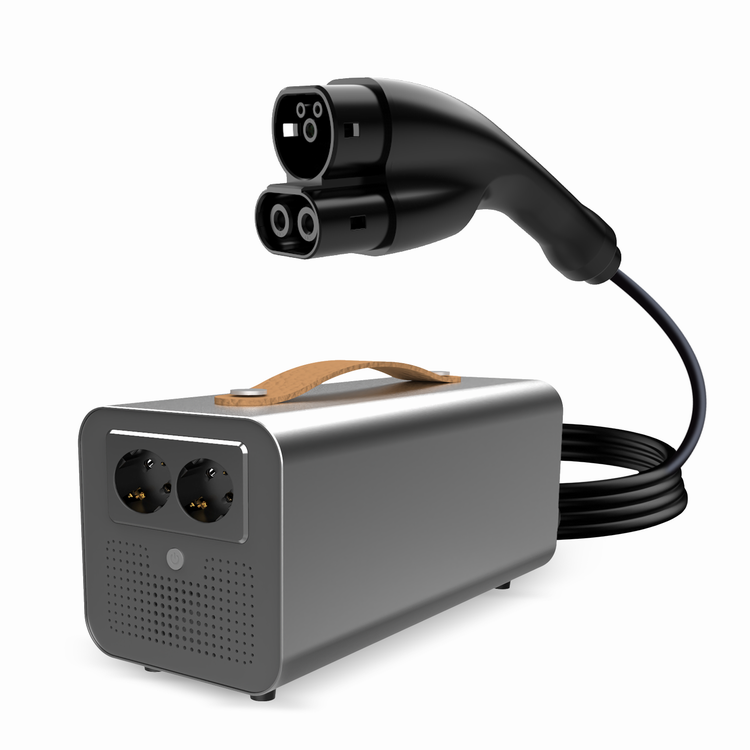

CCS2 V2L Discharger with European Socket CCS2 V2L Discharger 5kw

Instruction Manual for Multi - function Vehicle - mounted Power Supply

1.

I. Product Features

1. **High - power Output**

- This product can provide a power output of up to 4KW, easily meeting the power requirements of various electronic devices such as car refrigerators, navigation devices, mobile phones, and tablets. Whether it is for long - distance travel or daily commuting, it can ensure that your electronic devices are always fully charged.

2. **Wide Compatibility**

- It is compatible with most mainstream car brands on the market, including Ford, Chevrolet, Volkswagen, BMW, etc. You can use this product with confidence regardless of the vehicle model you drive.

3. **Safety Assurance**

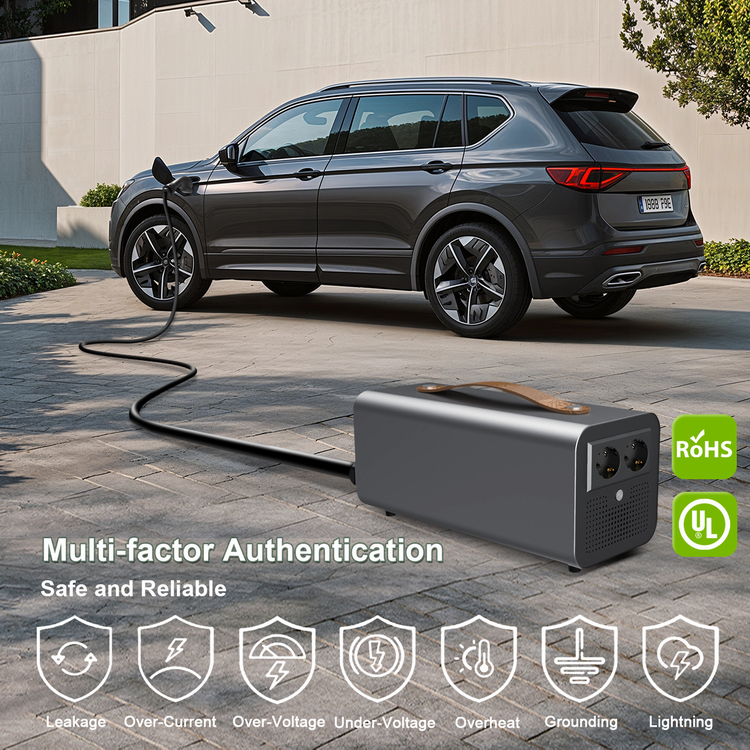

- Before leaving the factory, this product will undergo 15 strict testing procedures, covering aspects such as electrical safety, electromagnetic compatibility, and over - heat protection, ensuring that each product can operate safely and reliably, providing comprehensive protection for your use.

4. **User - friendly Operation**

- The startup and shutdown operations are simple and intuitive. The product is equipped with straightforward buttons and indicator lights. After pressing the startup button, you can know the real - time operating status of the device through the color changes of the indicator lights, without complex operation procedures.

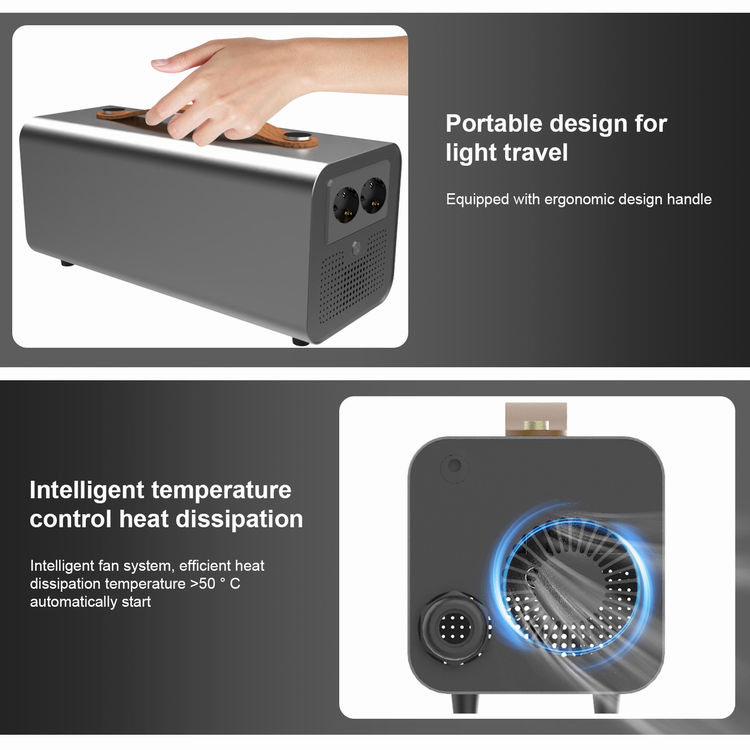

5. **Portable Design**

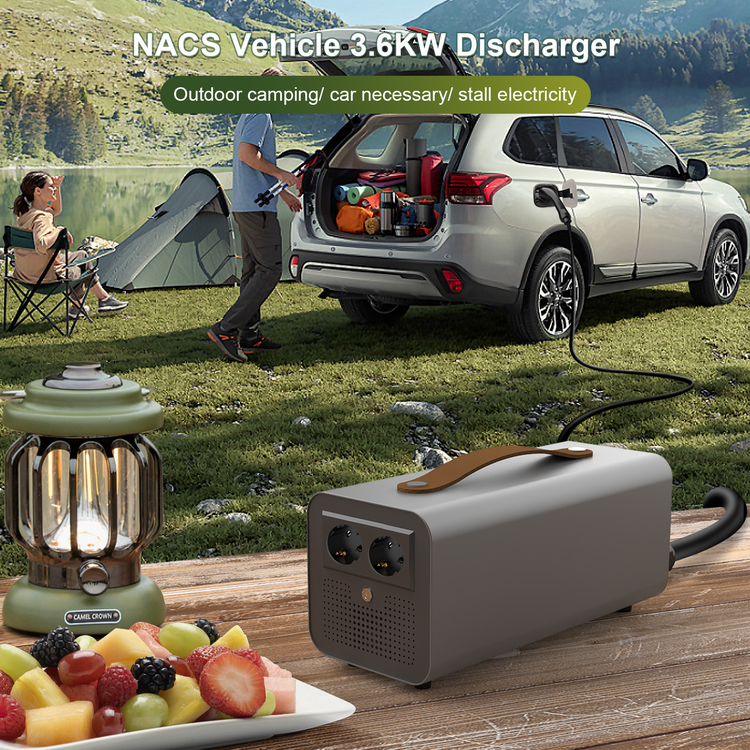

- The product comes with a dedicated protective cover for convenient storage and carrying. Its compact design makes it suitable for camping, road trips, outdoor work, and emergency power needs, etc. It is a thoughtful companion for your travel.

2.

II. Usage Instructions

 (I) Safety Information

1. Before connecting the plug to the car, make sure the system has started successfully.

2. When shutting down, first disconnect all connected electrical devices, turn off the power switch, then unplug the plug, and wait for 30 seconds to ensure the device is completely shut down.

3.

 (II) Power - on Steps

1. Press the startup button, and the red indicator light will turn on, indicating that the system is starting.

2. After about 20 seconds, the orange indicator light will turn on, indicating that the system has started successfully.

3. Insert the plug into the car's power interface, and the green indicator light will start to flash, indicating that it is establishing a connection with the vehicle.

4. When the green indicator light stays on, it indicates that the device has started to discharge, and you can connect electrical devices for use.

4.

(III) Power - off Steps

1. Disconnect all connected electrical devices.

2. Press and hold the startup button for 2 seconds, the blue indicator light will flash, and then you can unplug the plug.

3. After unplugging the plug, the orange indicator light will turn on, and wait for 30 seconds until the device shuts down automatically.

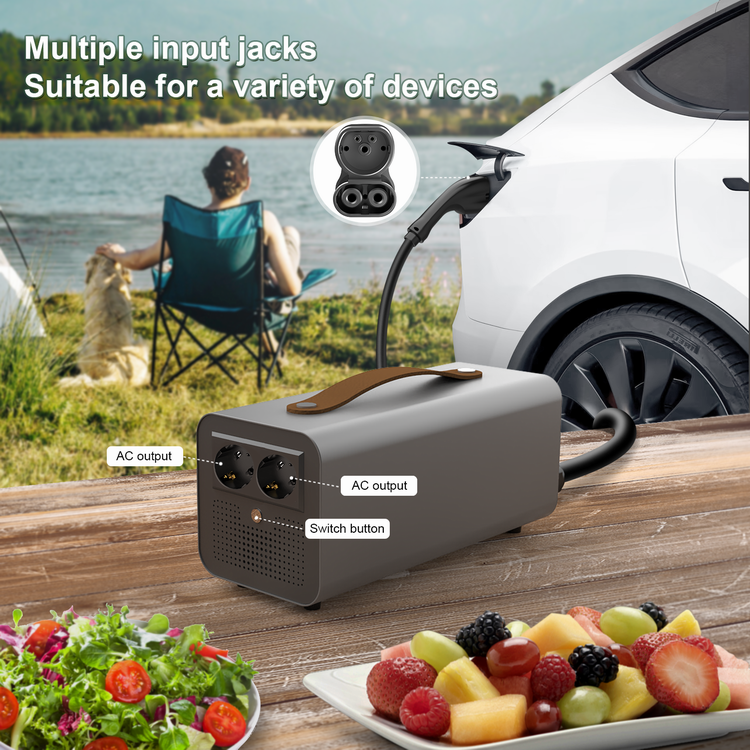

**Note**: All indicator lights are located around the startup button.

5.

 III. Precautions

1. Do not use this device in rainy or humid environments to avoid damage to the device.

2. The maximum discharge power of this device is 2.5KW (12.5A * 2, 120V). When using it, make sure there is good ventilation around the device, and do not block the air outlets and fans to prevent the device from overheating.

3. Do not disassemble the main unit by yourself, otherwise the warranty will be void.

4. If the device has not been used for a long time, the internal battery may be in a low - power state. In this case, before use, charge the battery for 30 minutes through the DC5.5 interface with a DC12V power supply to ensure the normal operation of the device.
