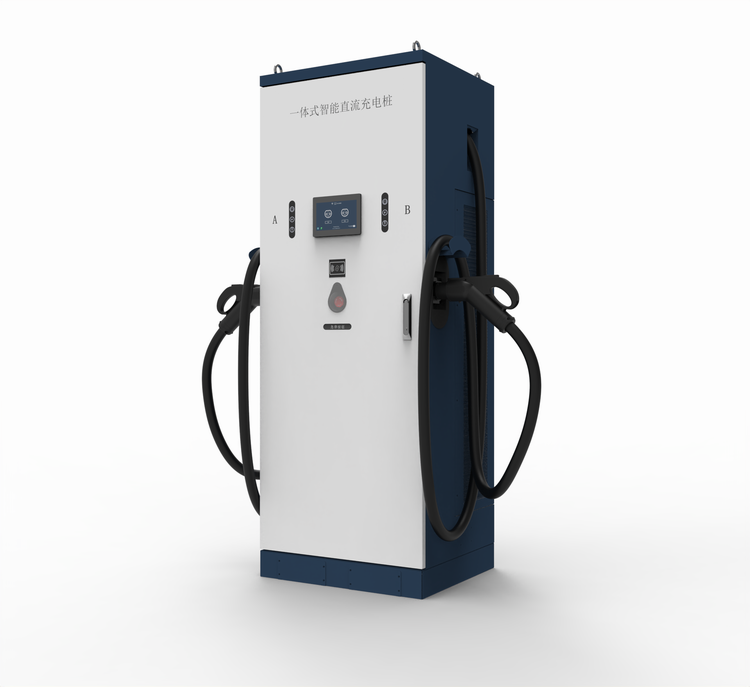

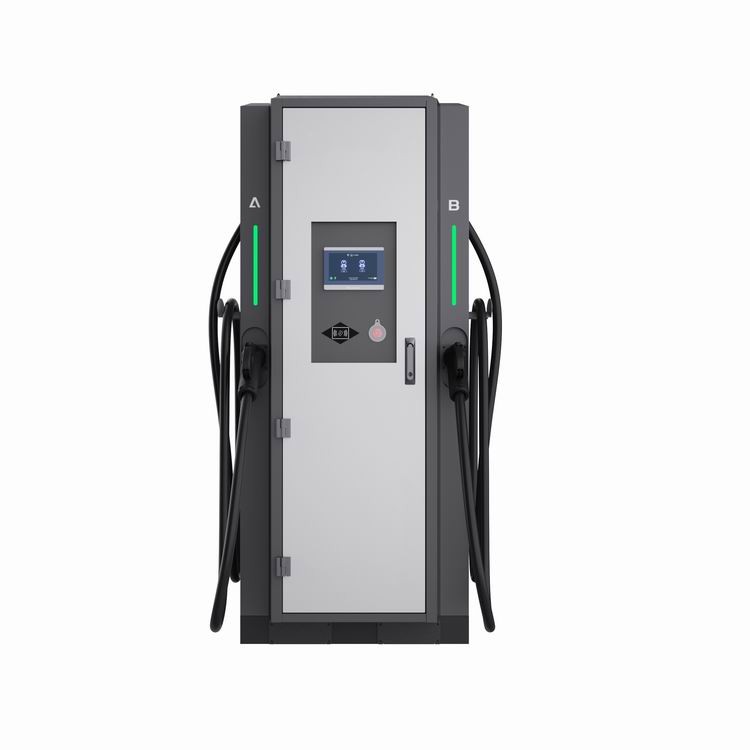

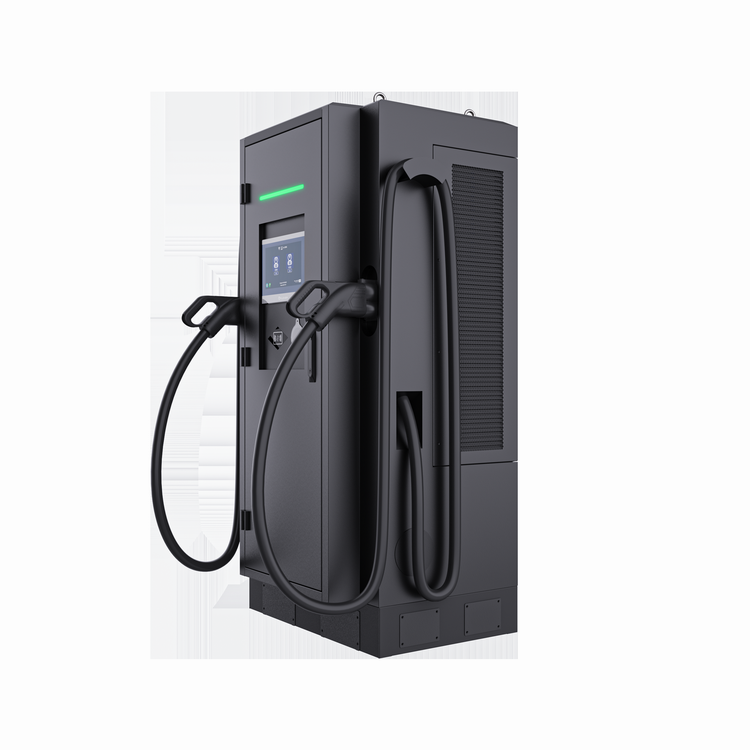

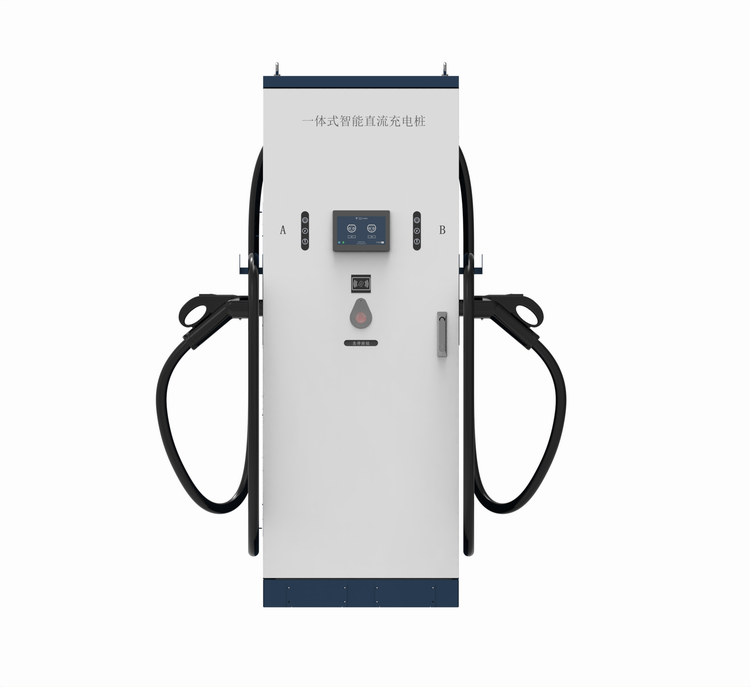

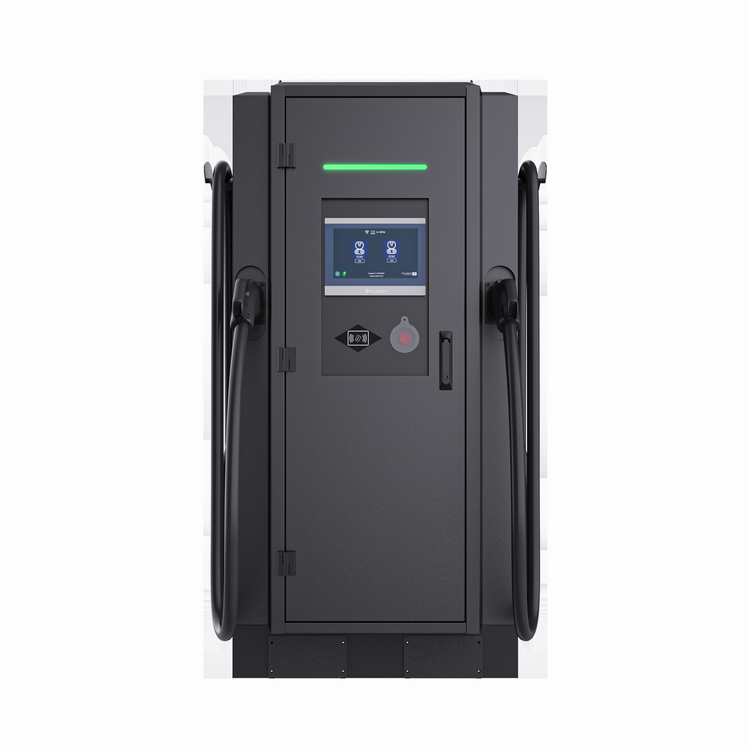

60KW 80KW 120kw 240kw DC floor mounting ev charger
| DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors. | |
| General specifications | |
| Environment | Indoor / outdoor |
| Operating temperature | ,-20 ºC to +50 ºC(de-rating characteristic applies) Option: -35 ºC to +50 ºc |
| Storage temperature | ,-40 ºC to +70 ºC |
| RFID system | ISO/IEC14443A/B, ISO/IEC15693, FeliCa™ 1, NFC reader mode, LEGIC Prime & Advant |
| Payments | Smart Card, Server based Online Payments or equivalent |
| Network connection | GSM / CDMA / 3G modem, 10/100 Base-T Ethernet |
| Interaction Display | Full-color (7 in 800x480 TFT ) LCD display for driver interaction |
| Visual Indicators | Error indication, Presence of input supply indication, Charge process indication and other relevant information |
| safety protection | Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, |
| Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock | |
| Push Button | Mushroom type emergency stop switch (Red) |
| Supported Communication Protocols | OCPP1.6 |
| Protection | IP54 |
| Input Chracteristics | |
| AC Supply System | Three-Phase, 5 Wire AC system (3Ph.+N+PE) |
| Nominal Input voltage | 3Ø, 260~530VAC |
| Input Frequency | 50Hz, ±10Hz |
